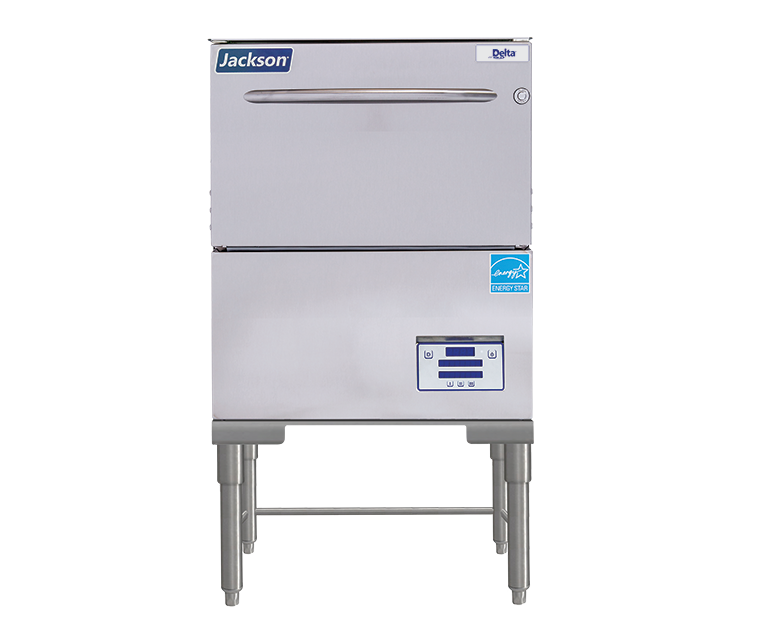

Delta® HT-E-SEER-T
The Delta HT-E-SEER-T uses hot water to wash and sanitize glassware, and the result is exceptional cleaning performance that effectively removes lipstick from glassware – and with no chemical residue! The Steam Elimination and Energy Recovery System (SEER) allows for installation at the bar, because it virtually eliminates the steam. SEER collects the hot water vapor generated during the wash and rinse cycles and uses it to preheat the incoming rinse water. This allows the machine to operate from a cold water supply only, saving energy and reducing steam to improve the operator’s experience. Outstanding Clean the First Time® results are delivered using only 0.60 gallons of water per rack. With a capacity of 24 racks or 864 glasses per hour, it can handle even the busiest happy hour.
- Ventless high temperature sanitizing glasswasher
- Steam Elimination
- Energy Recovery
- Operates on a single cold water connection
- Soft Start helps protect against chipping and breaking
- Three selectable timed cycles
Width
24.25"
Depth
26.88"
Height
41.75"
Weight
302 LB
Clearance
12"
- Ventless high temperature glasswasher
• No chemical residue
• Effectively removes lipstick from glassware - Steam elimination
- Energy Recovery System collects the hot water vapor inside
the machine and uses it to preheat the incoming rinse water - Operates on a single cold water connection
- Soft Start helps protect glassware from chipping and breaking

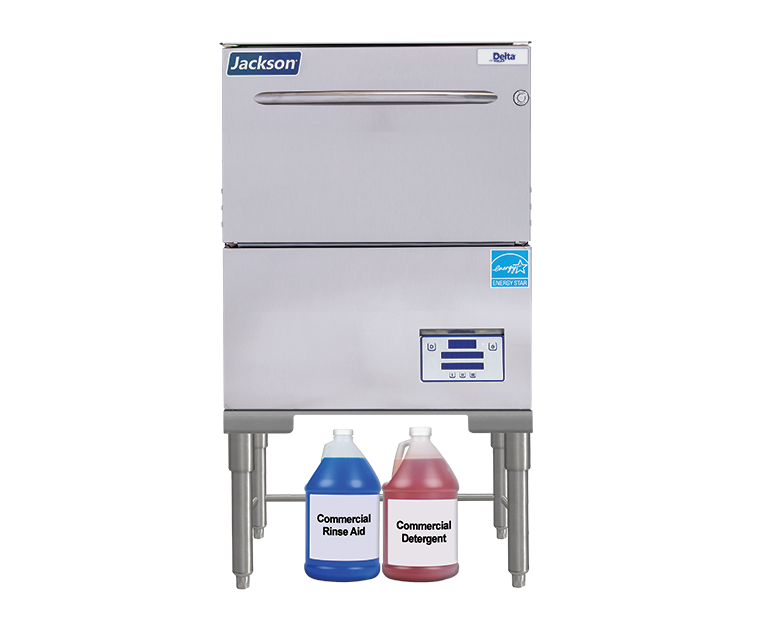

- 14″ tall stand allows for storage of chemical beneath the machine
- Energy Saver Mode
- Cleans 24 (20)* racks per hour using just 0.60 gallons
of water per rack - 12” clearance accommodates taller stemware, glasses & mugs
- Built-in booster heater with Sani-Sure™ final rinse system ensures
proper rinse temperature - Three selectable timed cycles for warewashing flexibility
and performance - Delime cycle
- Door interlock comes standard
- Digital LED temperature/operator display
- Automatic pumped drain for both floor and wall drain installations
- Built-in chemical pumps and priming switches
- Accommodates standard 20”x 20” racks
- Also available in a Short/Underbar design
- 208-230/60/1
- 1-year parts and labor warranty
*Racks per hour calculated with NSF suggested load time of thirty (30) seconds for front opening type
